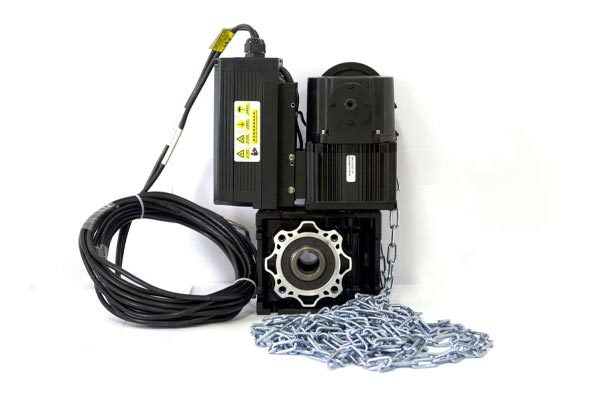

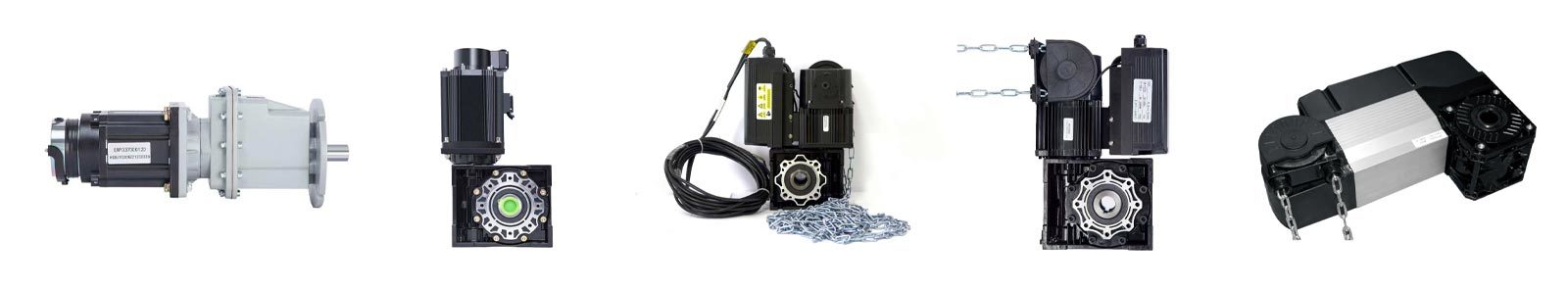

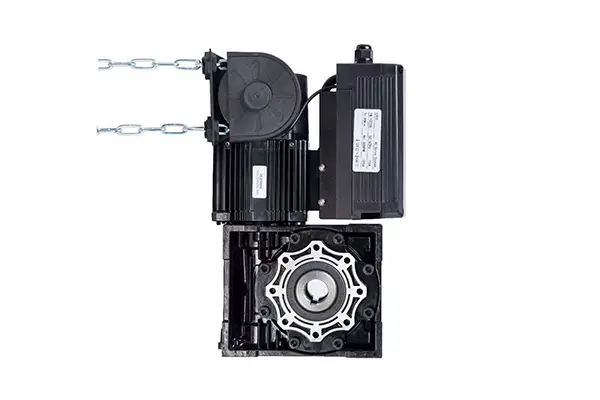

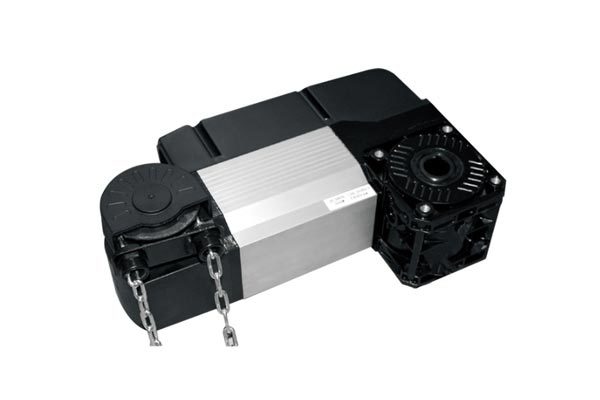

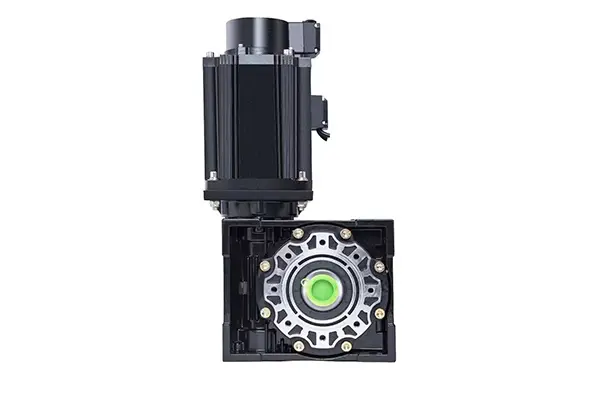

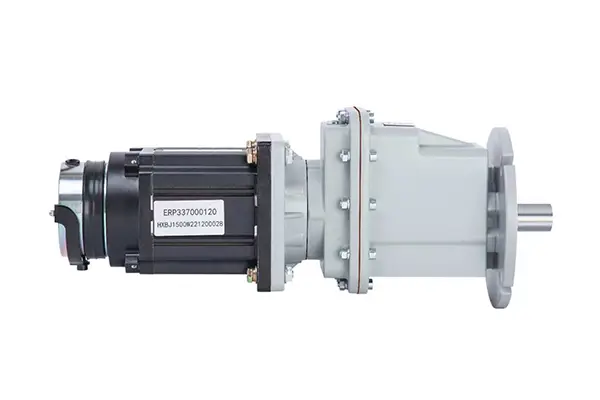

Electric motor

When installing the motor unit, the door shaft needs to be inserted more than halfway into the reducer. Before closing the door curtain, check whether there is any obstacle under the door curtain. If so, it must be cleaned.

Category：

Accessories

Keywords：

Accessories

E-mail

Production Process

Del Electrical Technical Parameter

model	gym60s-3	gym100s-3	gym150s-3
input voltage	220V	220V	220V
rated power	450w	650W	800W
Starting torque	60n.m	100n.m	150n.m
empty load running time	15min	15min	15min
Maximum improvement door weight	30 square meters	40㎡	50 square meters
supporting power control form	split
heat protection temperature	120 °
deceleration institution	The deceleration mechanism of the copper worm and the worm
empty load speed	24r/min
Lubrication method	oil immersion
noise	≤55db
manual chain form	360 ° universal chain type
Fast dismissal of power outage	Raise liberation (option)
Limit switch type	absolute value encoder electronic itinerary limit
output shaft aid diameter	Ф 25.4mm
Use environment	20 ℃ ~+45 ℃
Working system	S2 20%
protection level	ip 54
The quality of the whole machine	15kg	16kg	18kg

C series motor technical parameters

model	c40		c60		c90	c120
output rated torque	40		60		90	120	nm
Output rated speed	30						rpm
motor power	0.45		0.65		1.1	1.5	kw
Input power supply voltage	single phase AC200-240						v
Input power frequency	50/60						hz
input current	4	6		10		13	a
output hole diameter	25.4			25.4/32			mm
Work temperature	-20 ~+50						℃
Storage temperature	-20 ~+55						℃
ambient temperature	30%-85%,
protection level	ip54
limit mode	absolute value encoder
self -lock mode	Self -locking machine
manually release	bracelet
net weight	11	12		14.5		15	kg

A1 series motor technical parameters

output rated power	0.75	1.5		2.2	3.8	kw
Output rated speed	2500			2000	1500	PRM
output rated torque	2.86	5.72		10.5	24	nm
Work temperature	-20 ~+50					℃
Storage temperature	-20 ~+55					℃
ambient temperature	30%-85%, no dew
protection level	ip54		ip65
limit mode	absolute value encoder, close to switch
self -lock mode	electronic mechanical brakes
manually release	handle

Installation precautions:
The motor and controller must be grounded. When installing, debugging and opening and closing the door, it is strictly forbidden to stand or walk under the door; when installing the motor group, the door shaft needs to be inserted more than half of the reducer. Before closing the door curtain, check whether there is an obstacle under the door curtain. If there is, it must be cleaned up.
