Professional production and manufacturing of industrial doors
More than ten years of experience in the production and manufacturing of industrial doors
Fast rolling door
Category：
Product
Keywords：
Product
Production Process

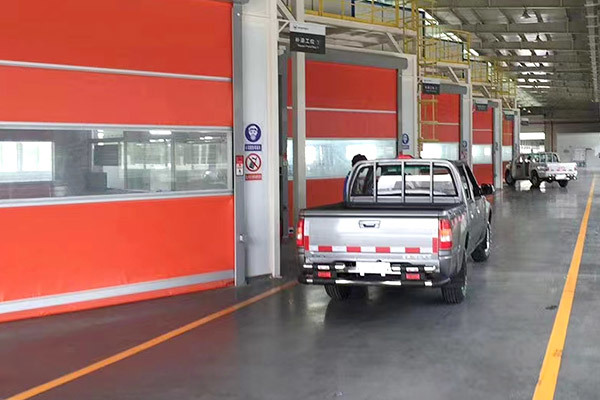

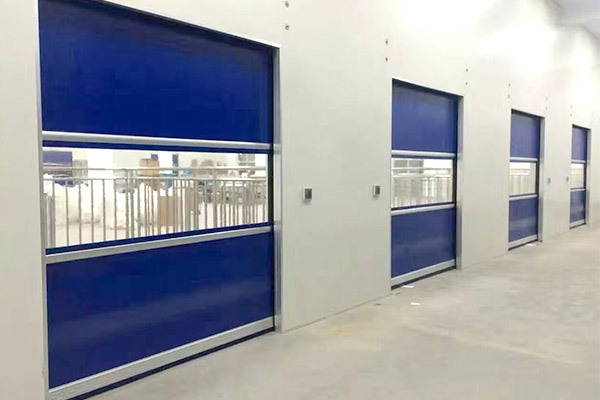

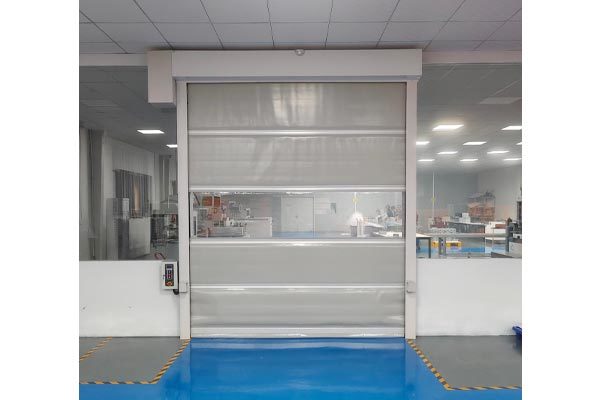

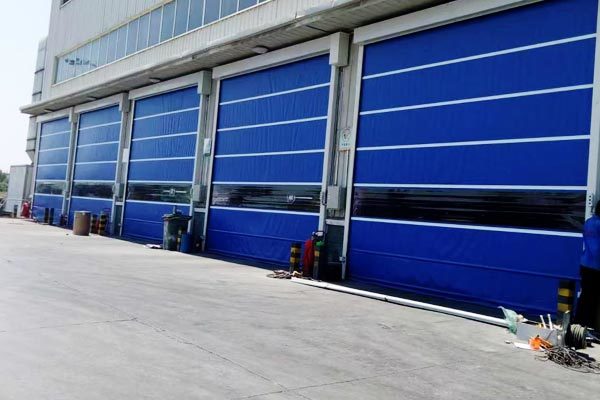

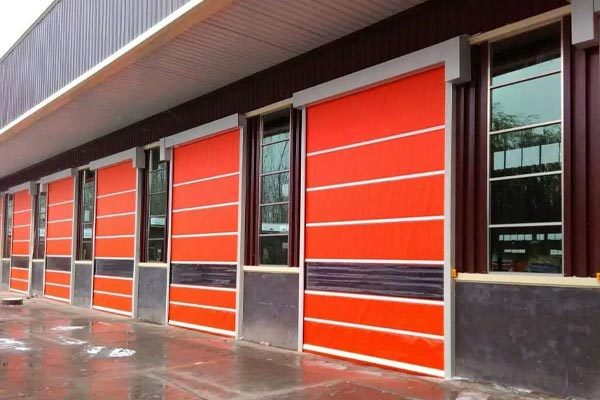

Fast rolling shutter door is also called fast soft curtain door. Juguang Fengtian fast rolling shutter door can achieve fast isolation, thus ensuring the dust-free level of workshop air quality. It has energy saving, intelligence, humanization, heat preservation, cold preservation, insect prevention, windproof, dustproof, sound insulation, fire prevention, odor prevention, lighting and other functions. It is widely used in food, chemical, textile, electronics, supermarket, refrigeration, logistics, warehousing and other places. It can meet high-performance logistics and clean places, and has the advantages of saving energy, high-speed automatic closing, improving working efficiency, and creating a better working environment.
Product parameters
|
Run speed |
Removal speed: 0.8-1.5m/s (can adjust speed according to actual needs) |
|
curtain |
Curtain cloth uses 0.9mm thick PVC base cloth or 1.5mm thick transparent cloth |
|
guide rail |
By the bend with 1.5mm thick galvanized steel plate, spray plastic treatment, you can customize the color |
|
wind ribs |
aluminum alloy wind bar, strengthen the curtain, improve the wind resistance intensity |
|
control system |
uses a servo control system and frequency conversion controller. When the power outage can be turned on or closed manually |
|
power system |
uses fast door special high-precision servo motors, power: 0.75-1.5kW. |
|
sealing |
The fast roller door is set on both sides of the door frame. Increased air -to -air cloth, it can be closely combined with the uneven ground to ensure the gate sealing |
|
security |
use infrared safety protection device |
|
window |
The size of the door body can be installed on -site installation size adjustment, adding the window, increasing indoor lighting and its transparency |
Equipment

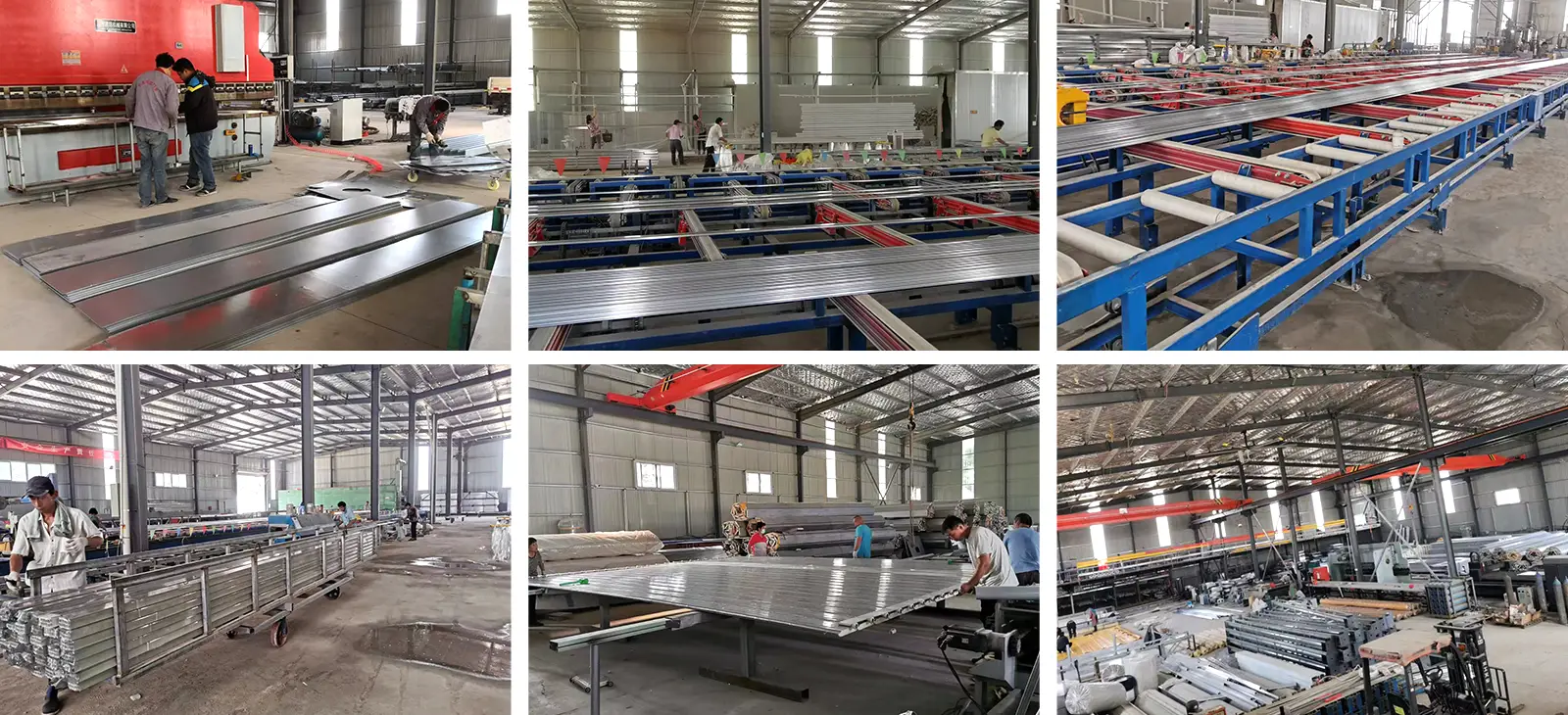

The company has advanced equipment: 6-meter optical fiber cutting machine, 6-meter large bending machine, automatic slitting shearing machine, robot welding, hard shutter board fully automatic assembly line, automatic cloth cutting machine, continuous heat sealing machine, aluminum profile extrusion machine, fully automatic spraying assembly line, etc.
