Professional production and manufacturing of industrial doors
More than ten years of experience in the production and manufacturing of industrial doors
Flexible door
Category：
Product
Keywords：
Product
Production Process

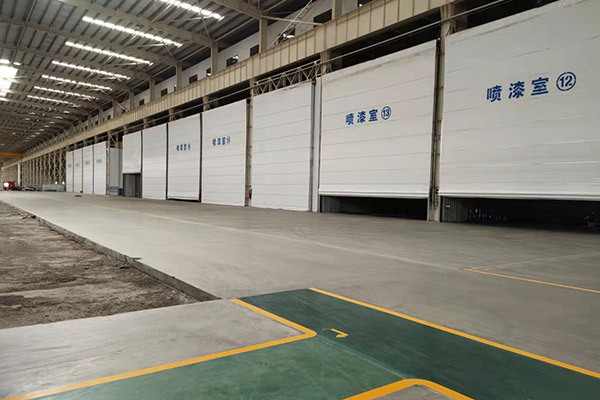

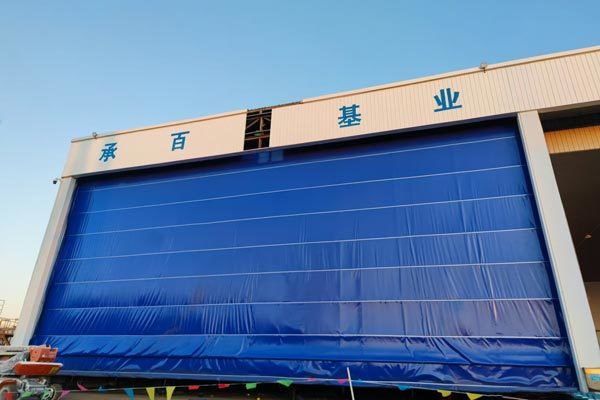

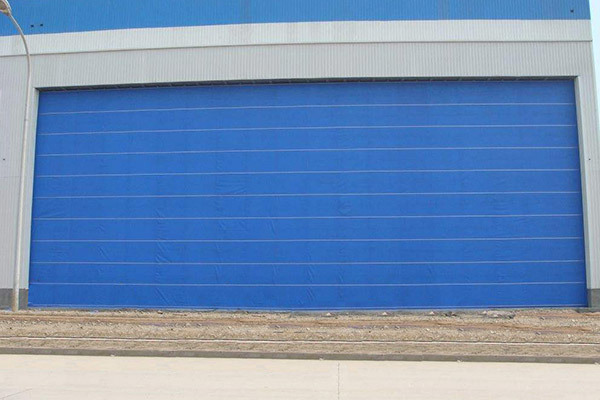

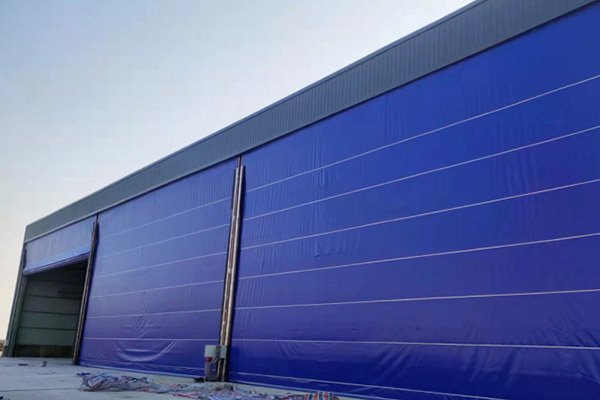

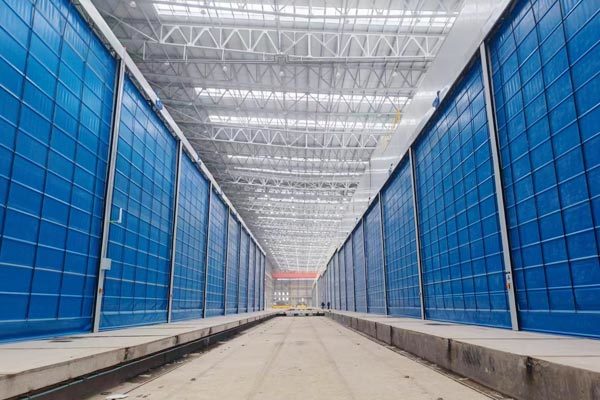

The flexible door is composed of multiple door bodies, retractable hanging columns, lifting drive system, guide sealing system and electric control system. It is suitable for large warehouses, painting workshops, small hangars and other occasions. The steel structure of the flexible door consists of a horizontal frame, a bottom frame and an upper frame. The bottom side of the bottom frame adopts a special rubber sealing strip, and sealing covers are installed on both sides, with good sealing performance. The bottom of the door adopts a windproof fixing device, which is safe and reliable, easy to open, small footprint, light weight, novel structure, wind resistance, sound insulation, and heat preservation.
Main advantages of the product
The anti-fall protection system is adopted, and the door body will not fall if the sling is broken.
A double wind-resistant system is adopted, that is, the upper and lower stretching system and the rib uniform wind-resistant system.
A multi-point lifting system is adopted, and the door body can still operate if one sling is broken. If the bottom beam is broken, the door body will not fall.
Product parameters
|
Average opening speed |
0.1-0.3m/s |
|
maximum wind speed |
Anti -13 -level wind |
|
structure |
Pillar and their merchants use high -quality steel |
|
overall door framework |
Carrying self -weight |
|
power system |
2.2-15KW |
|
power supply |
380V 50Hz |
|
Control voltage |
24V |
|
curtain structure |
double layer curtain |
|
temperature limit |
-30 ℃ ~+70 ℃ |
|
Step curtain stretch strength |
400dan/5cm |
Equipment
The company has advanced equipment: 6-meter optical fiber cutting machine, 6-meter large bending machine, automatic slitting shearing machine, robot welding, hard shutter board fully automatic assembly line, automatic cloth cutting machine, continuous heat sealing machine, aluminum profile extrusion machine, fully automatic spraying assembly line, etc.
